| Brand Name: | ANS |
| MOQ: | 1 |
| Packaging Details: | 15.7*15*3.15(in) |
| Payment Terms: | L/C, T/T, Western Union |

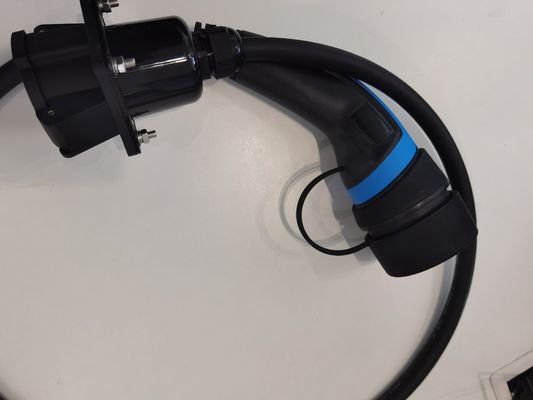

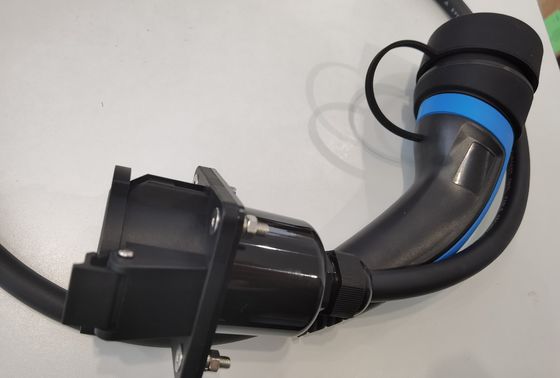

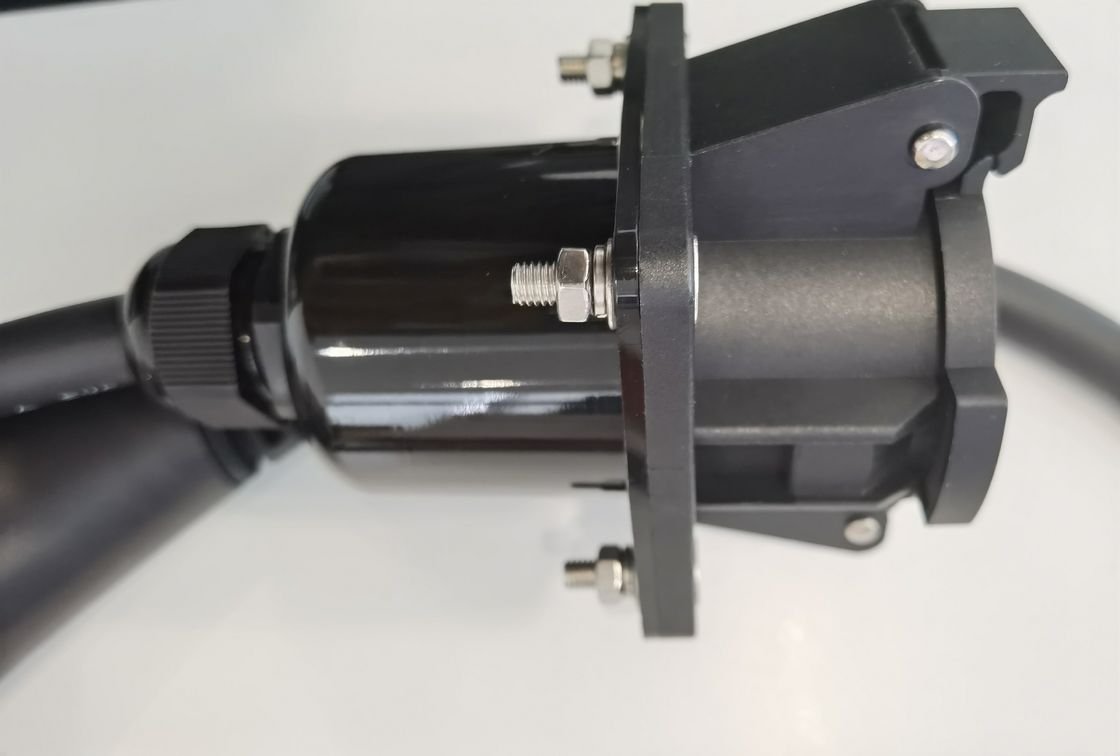

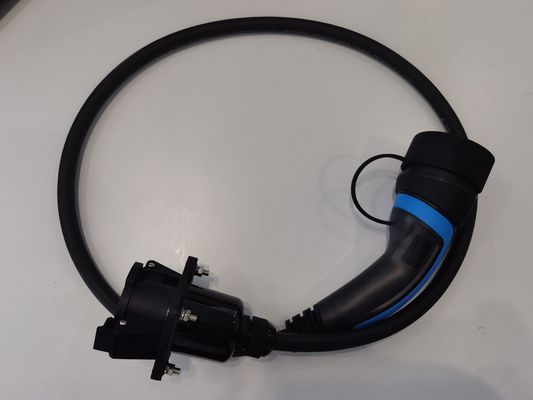

Type 1 socket to Type 2 plug EV adapter 32A ev cable Socket to GBT Plug EV Charging Adapter
| Input & Output | |||
| Input voltage/Output voltage | 100~250V AC | Max. output current | 32A 3Phase |
| Input frequency | 47~63Hz | Charging interface type | Type 2 |
| Max. output power | 22KW | ||
| Protection | |||
| Over voltage protection | yes | Earth leakage protection | yes |
| Under voltage protection | yes | Over-temp protection | yes |
| Over load protection | yes | Lightning protection | yes |
| Short circuit protection | yes | ||
| Function and Accessory | |||
| Ethernet/WIFI/4G/Bluetooth | No | Cable gauge | 5*6mm2 + 2*0.5mm2 |
| Plug type | Type 2 male&female | Plug material | ABS |
| Length | 5 meters | Cable material | TPU |
| Working environment | |||
| Waterproof Protection degree | IP55 | Maximum altitude | <2000m |
| Environment temperature | -40℃ ~ +50℃ | Cooling | Natural air cooling |
| Relative humidity | 0-95% non-condensing | Standby power consumpiton | <8W |
| Package | |||
| Dimension (W/H/D) | 40/38/8cm | Weight | 4KG |
| Certificate | CE, TUV, | ||
|
|
