| Brand Name: | ANS |

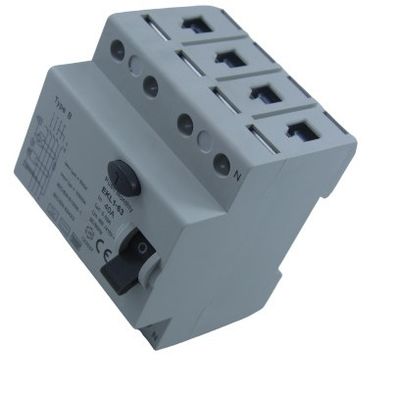

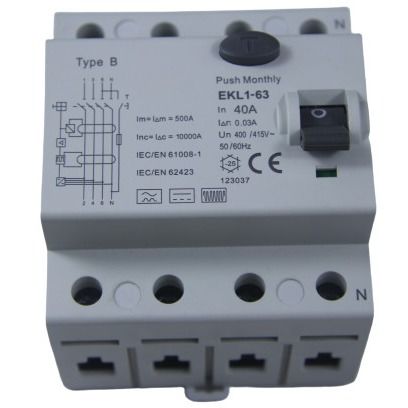

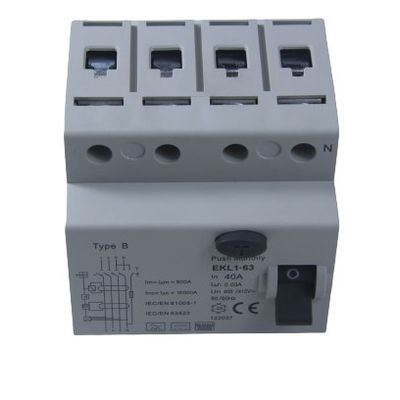

| Model Number: | EKL1-40B 10KA B type RCCB |
| MOQ: | 5pcs |
| Price: | USD10-USD70 |
| Packaging Details: | Carton box. Carton size: 43*43*21cm |
| Payment Terms: | T/T, Western Union,Paypal, L/C |
| Mode | Electromagnetic |
|
Type(wave form of the earth leakage sensed): |
B |
| Rated current In |
25,40,63A
|
|
Poles
|
4P
|
|
Rated voltage
|
4P 415V~
|
|
Insulation voltage Ui
|
500V
|
|
Rated frequency
|
50/60Hz
|
|
Rated residual operation current(I△n)
|
30mA
|
|
Rated residual making and breaking capacity (I△m)
|
500(In=2540A) 630(In=63A)
|
|
Short-circuit current Inc= I△c
|
10,000A
|
|
Break time under I△n
|
≤0.1s
|
|
Rated impulse withstand voltage(1.5/50) Uimp
|
4000V
|
|
Dielectric test voltage at ind.Freq. for 1min
|
2.5kV
|
|
Electrical life
|
2,000 Cycles
|
|
Mechanical life
|
4,000 Cycles
|
|
|
