| Brand Name: | ANS |
| Model Number: | ANSAG-T2-T2-32A-3-ST |
| MOQ: | 5pcs |
| Price: | USD70-100 |
| Packaging Details: | Carton box. Carton size: 43*43*21cm |
| Payment Terms: | T/T, Western Union,Paypal, L/C, L/C |

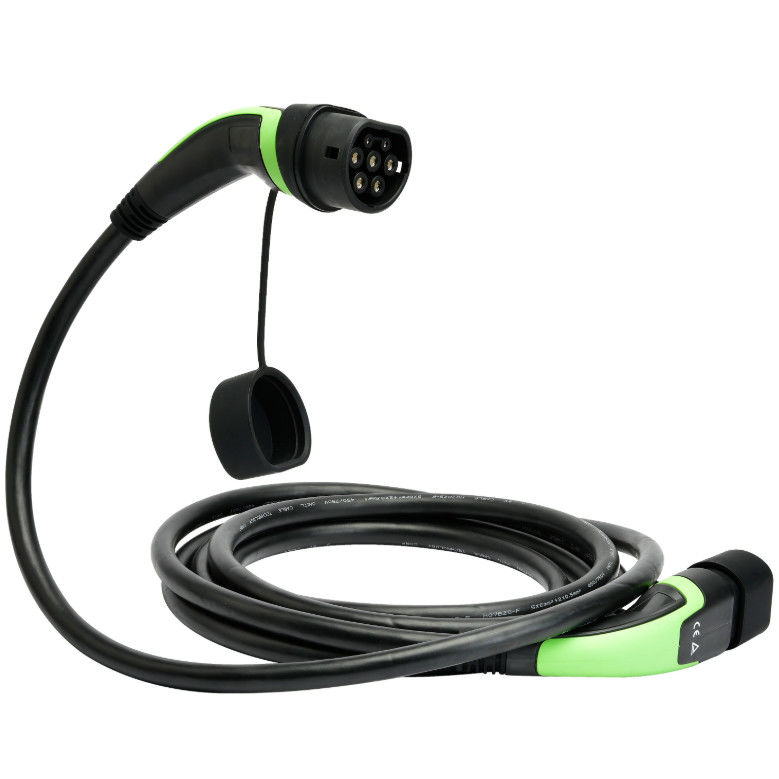

32A 3phase Mode 3 electric vehicle type 2 to type 2 ev charging cable
The ANS ANSAG-T2-T2-32A-3-ST is suitable for all modern electric vehicles with Type 2 sockets, which are now the EU standard and used by most car manufacturers. The cable has a charging capacity of up to 22kW, 32A 3phase. The cable would reach up to IP66 under working standard.
Characteristics
using riveting pressure process with no screw, have a beautiful appearance. Hand-held design conforms to the ergonomic principle, plug conveniently.
XLPO for cable insulation prolonging the aging resistance life-span. TPU sheath improved the bending life and wear resistance of the cable.
Excellent protection performance, protection grade achieved IP55(working condition).
Adopted combined color coating technology, personalized custom a variety of colors(orange, blue, green, grey, white)
Specification:
|
product application |
Electric vehicle |
|
rated current |
32A |
|
rated voltage |
480V |
|
Mechanical life |
no-load plug >10000 times |
|
Withstand voltage |
2500V |
|
Insulation resistance |
>1000MΩ (DC500V) |
|
Operating temperature |
-30 ºC ~ +50 ºC |
|
Cable Size |
5*6+2*0.5mm2 |

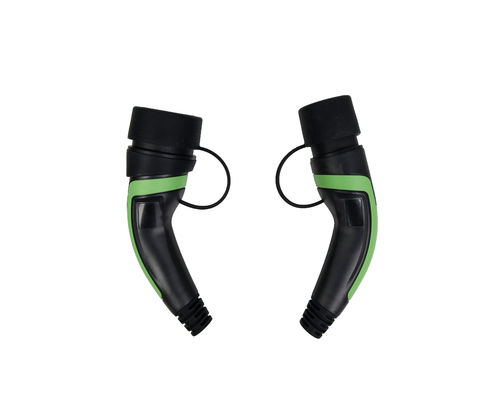

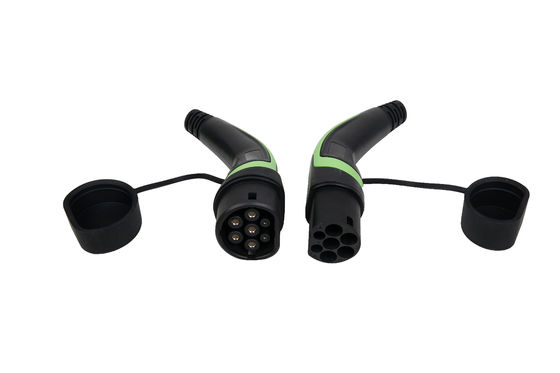

Drawings and appearance:
Workshop Overview
|
