CHAdeMo Fast Charger

45kW CHAdeMO Charging Station Portable EV Fast Charger With CCS Combo 2 Plug

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

45kW CHAdeMO Charging Station Portable EV Fast Charger With CCS Combo 2 Plug

Brand Name:	ANS
Model Number:	ANS-DC-45kW
MOQ:	1pc
Price:	USD
Packaging Details:	wood standard package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

Portable Quick EV Charger

Power:

Efficiency:

3Phase

Output Current:

66A, 500V

Input Frequency:

Operation Temperature:

-20℃- +45℃

Dimension:

600mm*600mm*240mm

Supply Ability:

20pcs a day

Highlight:

45kW CHAdeMO Charging Station

Portable CHAdeMO Charging Station

CHAdeMO Portable EV Fast Charger

Product Description

45kW CHAdeMO Charging Station with CHAdeMo Plug and CCS Combo 2 Plug Portable Quick EV Charger

It is supporting CCS and CHAdeMO only by replace the cable.
USB for firware update and RJ45 port for internet connect(optional)
Open door design,it is convenient to replace power module.
Real-time display: 4.3 inches LCD touch screen display with indicator function,which can remaining battery power,charging voltage,current,charging time and the charger’s failure state.
With emergency stop system: it can cut off the output current at the first time in an emergency.The air switch can cut off the AC input.
input cable and output cable stored separately.The connect between AC input charger connector and DC output charger are detachable connector.

input voltage	220/380/400/415/440 ±15% VAC,3Φ3L+PE,3Φ3L+N+PE
input frequency	50/60Hz±10%
input power factor	≥0.95
input THD current	≤5%
support battery	LiFePO4,li-ion,Lead acid etc
output voltage	50-500VDC
output power	0-25kW
output current	0-66A
output voltage accuracy	±0.1%
output current accuracy	±0.1%
output ground protection	support
HMI and command unit	LCD touch display
emergency stop	support
overall efficiency	93%
support protocol	GB,CHAdeMO,SAE,OCPP etc
parallel operation	support parallel operation
insulation test	Input&Output to Ground 1500V,Control Circuit to Ground 500V
protection degree	IP23 indoor / IP55 outdoor
overall weight	36kg
standard	GB,EN 61851; EN61000; JEVS; UL2202, 2231-1, 2231-2 ect

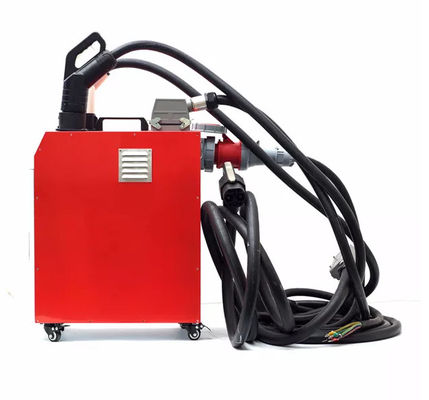

45kW CHAdeMO Charging Station Portable EV Fast Charger With CCS Combo 2 Plug 0

Certification: CE

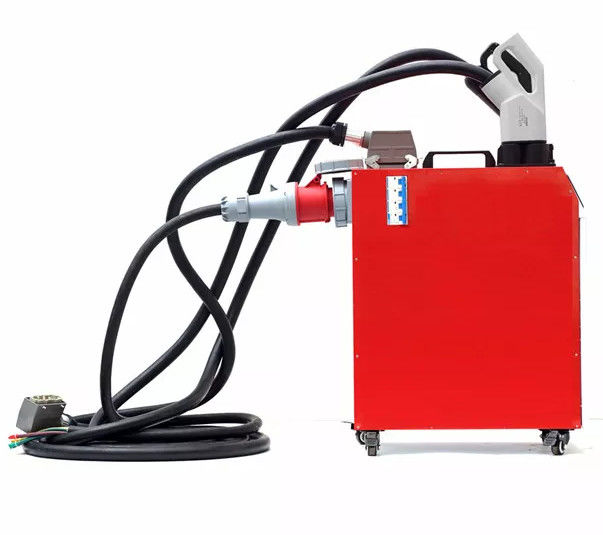

45kW CHAdeMO Charging Station Portable EV Fast Charger With CCS Combo 2 Plug 1
