IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter
  • name
  • name
  • name

IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter

Brand Name: ANS
Model Number: ANS-T2-7kW
MOQ: 1pc
Price: USD
Packaging Details: standard export package
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
TUV, CE
Product Name:
Type 2 Female Socket With Shutter
Amps:
32A
Voltage:
250V
Power:
7kW
Materials:
Thermopatic Materials
Waterproof:
IP55
Cable Size:
3*6mm2
Supply Ability:
500pcs a week
Highlight:

IP55 Type 2 Female Socket

,

IP55 7kW Type 2 Female Socket

,

250V IP55 EV Charging Socket

Product Description

EV Charging Sockets Connection TUV CE Certification Type 2 Female Socket with Shutter



Features

  • Comply with EC62196-2:2010standard
  • Nice appearance,with protective door,with protective cover, support after instllation
  • Mechanicalife:no-load plugin/pllout>100 times
  • Operating temperature: -30℃~+50℃
  • Material:Thermopatic materials
  • Terminal: copperallo, siver plated
  • Inner core: thermoplastic
  • Superior protection performance, protection level up to IP55(afterinsertion)

Electrical Performance



Rated current 32A
Operation voltage 250V
Terminaltemperature rise < 50K
Electical esistance 200v

DC Contact Resistance

 0.5 mQ Max
Cable pecification 3*6mm²+2*0.75mm2

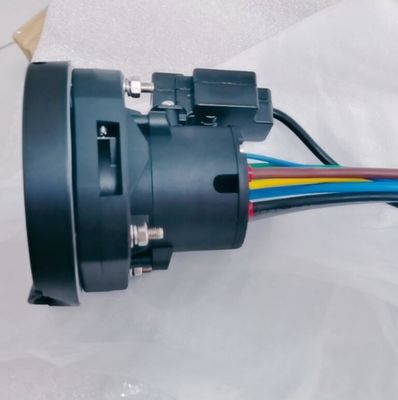

IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter 0

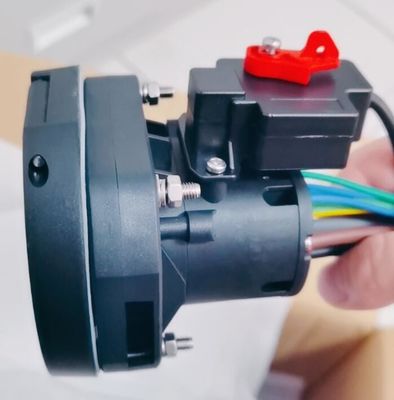

IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter 1



Certification:TUV,CE

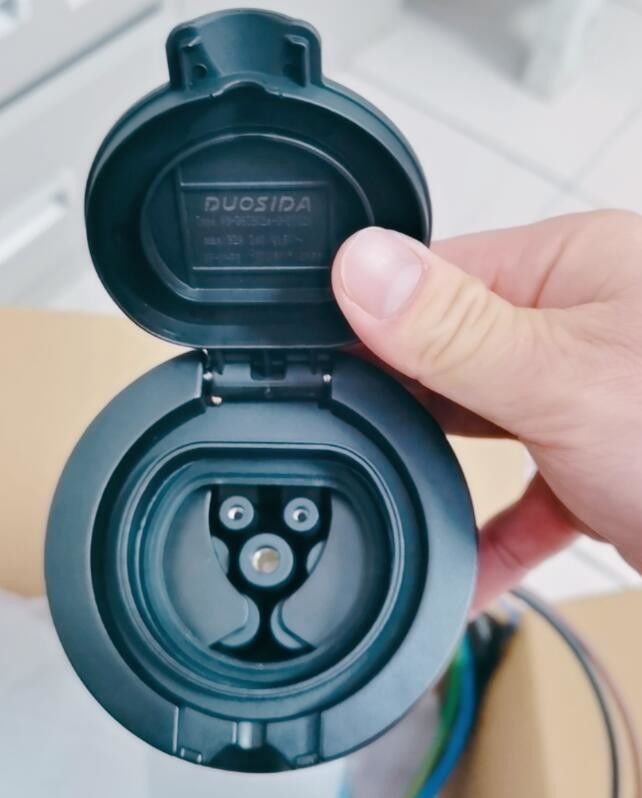

IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter 2

IP55 7kW Type 2 Female Socket TUV CE Certification With Shutter 3



Tags:

EV Charging Accessories

Type2 Socket EV Charging Accessories
