22kW EV Type 2 Socket

Brand Name:	ANS
Model Number:	ANS-T2-22kW
MOQ:	1pc
Price:	USD
Packaging Details:	standard export package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV, CE

Product Name:

Type 2 Socket

Amps:

Voltage:

Power:

Materials:

Thermopatic Materials

Waterproof:

Cable Size:

5*6mm2

Supply Ability:

500pcs a week

Highlight:

32A EV Type 2 Socket

22kW EV Type 2 Socket

480V Type 2 Charger Socket

Product Description

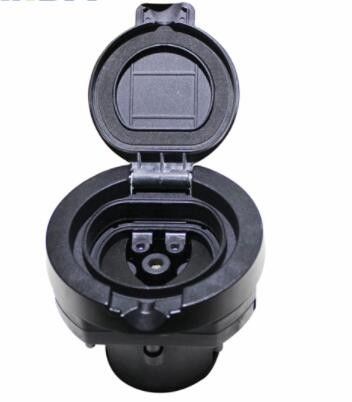

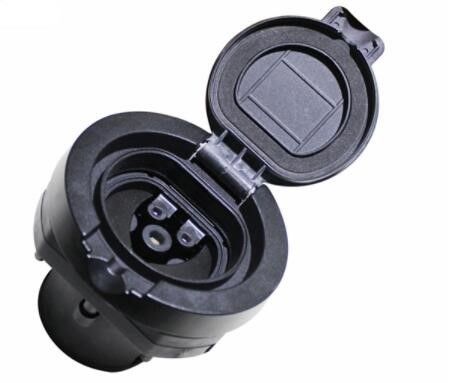

Type 2 Charging Station Socket 32A 480V 22kW Electric Vehicle Connection TUV CE Type 2 Socket with Protective Door

Features

Comply with EC62196-2:2010standard
Nice appearance,with protective door,with protective cover, support after instllation
Mechanicalife:no-load plugin/pllout>100 times
Operating temperature: -30℃~+50℃
Material:Thermopatic materials
Terminal: copperallo, siver plated
Inner core: thermoplastic
Superior protection performance, protection level up to IP55(afterinsertion)

Electrical Performance

Rated current	32A
Operation voltage	480V
Terminaltemperature rise	< 50K
Electical esistance	200v
DC Contact Resistance	0.5 mQ Max
Cable pecification	56mm²+20.75mm2

22kW EV Type 2 Socket 0

22kW EV Type 2 Socket 1

22kW EV Type 2 Socket 2

Movement: 1 plug inserted to trigger the drive block and latch to move outward, the protective door rotates around the pivot point A under the action of the extension spring

2 pull out the plug drive block and latch back under the action of the spring, the protection of the door back under the action of the pivot point C

Protection: 1. Separate trigger latch protection door in the role of the pivot point C does not move,then play a protective role

2 separate trigger drive block to protect the door in the role of the latch does not move, then play a protective role

Certification:TUV,CE

22kW EV Type 2 Socket 3

22kW EV Type 2 Socket 4
