32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade

Brand Name:	ANS
Model Number:	ANSAG-T2-T2-32A
MOQ:	1pcs
Price:	USD
Packaging Details:	standards export package
Payment Terms:	L/C, D/A, T/T, D/P, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV,CE,RoHs, REACH

Product Name:

Type 2 To Type 2 EV Charging Cables

Amps:

Charging Mode:

Mode 3 Ev Charging Cable

Voltage:

Length:

Materials:

Huntsman

Plug Standard:

IEC 62196

Grounding:

Standard Grounding

Warranty:

24 Months

Phase:

3phase

Supply Ability:

1000pcs one day

Highlight:

REACH Type 2 To Type 2 EV Charging Cable

22kW Type 2 To Type 2 EV Charging Cable

Product Description

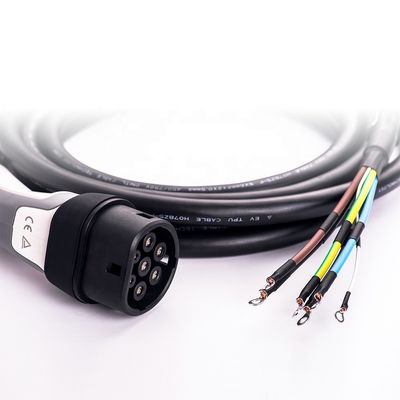

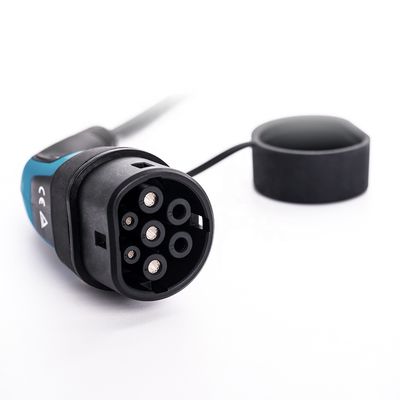

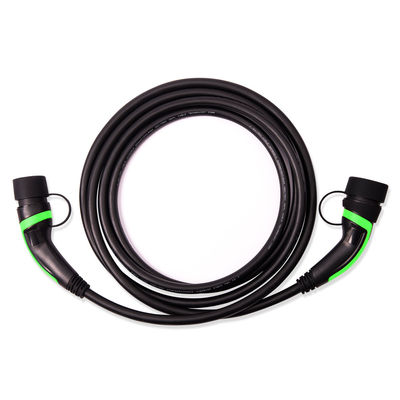

EV Charging Plugs with TPU Materials Cables 32A 480V 22kW Waterproof IP55 Type 2 to Type 2 EV Charging Cables

Product Features

Conform to the provisions and requirements of IEC 62196-2 2016 2-lle
Using riveting pressure process with none screw ,have a beautiful appearance. Hand-held design conform to the ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending life and wear resistance of cable.
Excellent protection performance, protection grade achieved IP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors ( Orange, blue, green,grey )

Applied Materials

Shell material: thermoplastics, flame retardant grade UL94-0

Operating temperature: -30°C~ +50°C

ProductModel:	ANSAG-T2-T2-32A
Product Type	Type 2 to Type 2 ev charging cable
Stardard:	IEC 62196-2
Rated Voltage:	AC480V
Rated Current:	32A
Withstanding voltage:	2000V
Working temperature:	-30℃ to +65℃
StorageTemperature:	-40℃ to +70℃
Terminal temperature rise:	<50K
Contact impedance:	0.5mMax
Protection level:	IP67
Certifications:	TUV CE
Warranty:	2 years
Plug Colour:	Black, Red, Orange, Yellow, Green, Blue or Customization
Mechanical life:	No-load plug in/pull out>10000 times
Insertion and Extration Force:	45N<F<100N
Impato fex ternal force:	Can afford 1m drop and 2T vehicle run over pressure

Part name	Material	Supplier
Cable	PUR (TPU)	HUNTSMAN: A85P4380
Shell of plug	PC+PBT	SABIC:V3900WX
Head of plug	PA66+GF25	DUPONT: FR50

Our advantages

Wide range of products from AC to DC,total around 55 categories
Advanced tech and the first TPU ev cable supplier
Different color selection of plugs without MOQ--aound 6 differnet
colors now as standard
OEM service--print your own logo and make your own
color for the charging items
High competitive price comparing to other products on the market

All charging prudcts are with CE/TUV/UL listed. ISO etc.Total 16certifications
High quality of raw materials from Huntsman,Sabic,Dupont
Product quality is widely aprroved by many car and charger factories as well, like JAC,BYD
China, and Haima New energy etc.
2years warranty, life-time tech support
High comment.We Have won around 688 positive feedbacks from customers
Professional and efficient sales team offering you one stop charging solution for your business
OEM service--Always making any samples meeting customers’ requirements. we can produce
by your samples or technical drawings and can build the molds and fixtures.
Fast delivery--We will send out your order usually within 7days for samples

Certification:TUV,CE,RoHS, REACH, ISO 14001:2015,IATF16949

32A 480V 22kW Type 2 To Type 2 EV Charging Cable IP55 protection Grade 1
