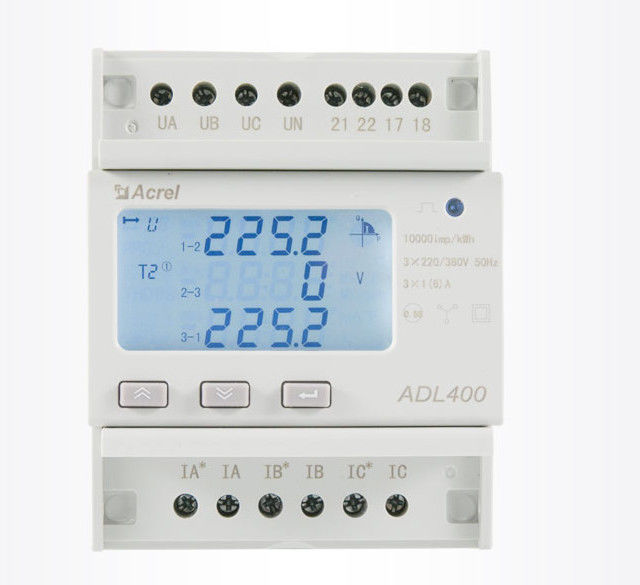

ADL400 Three Phase Energy Meter

ADL400 Three Phase Energy Meter

Brand Name:	ANS
Model Number:	ADL400
MOQ:	5pcs
Price:	USD40-USD80
Packaging Details:	Carton box. Carton size: 434321cm
Payment Terms:	T/T, Western Union,Paypal, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV/CE/UL/RoHS/REACH

Product Name:

Energy Meter

Phase:

Three Phase

Current/-CT:

10-80A/1(6)A

Display Type:

LCD

Output Voltage:

380V/100V

Dimensions:

72mm*88mm*70mm

Communication:

RS485 Modbus RTU

Ndards Compliant:

IEC 62053-21:2003

Supply Ability:

600pcs/day

Highlight:

ADL400 Three Phase Energy Meter

,

RS485 Communication Three Phase Energy Meter

Product Description

ADL400 three phase din rail RS485 communication energy monitoring system energy meter

ADL400 three-phase electric meter is designed for three-phase energy measurement on a low voltage system. The meter meets the related technical requirements of electronic meter in the IEC62053-21,IEC62053-22 standards.

Technical Data:

Voltage	Reference voltage		357.7/100V, 3220/380V, 3100V, 3380V
	Reference frequency		45-65 Hz
	Consumption		<10VA( Single phase)
Current	Maximum		6A,80A
	Starting current		Direct connect:0.004 Ib Connect via:0.001 In
	Consumption		<4VA(Single phase rated current)
Measurement performance	Accuracy of active kWH		Class 0.5S
	Standards complicant		IEC 62053-21:2003
Pulse	Pulse width		80+20 ms
	Pulse constant		400 imp/kWH 6400 imp/kWH
Communication	Interface		RS485
	Protocol		Modbus-RTU
Outling	LWH(mm)		728870
Environment	Temperature		Operating:-25℃~55℃；Storage:-40℃~70℃
	Humidity		≦95% (No condensation)
	Altitude		<2000m

Working Environment:

Temperature	Working	-25℃~+55℃
	Storing	-40℃~70℃
Humidity	≤95%(No condensation)
Altitude	<2000m

Functions:

ADL400 Three Phase Energy Meter 0

Dimension drawings:

ADL400 Three Phase Energy Meter 1

Wiring and installing

Tags:

EV Charging Accessories
