| Brand Name: | ANS |
| Model Number: | ANSAG-T1-T2-16 |
| MOQ: | 1 |
| Price: | USD |
| Packaging Details: | 15.7*15*3.15(in) |
| Payment Terms: | L/C, T/T, Western Union |

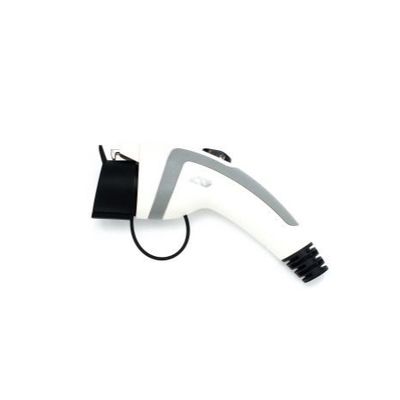

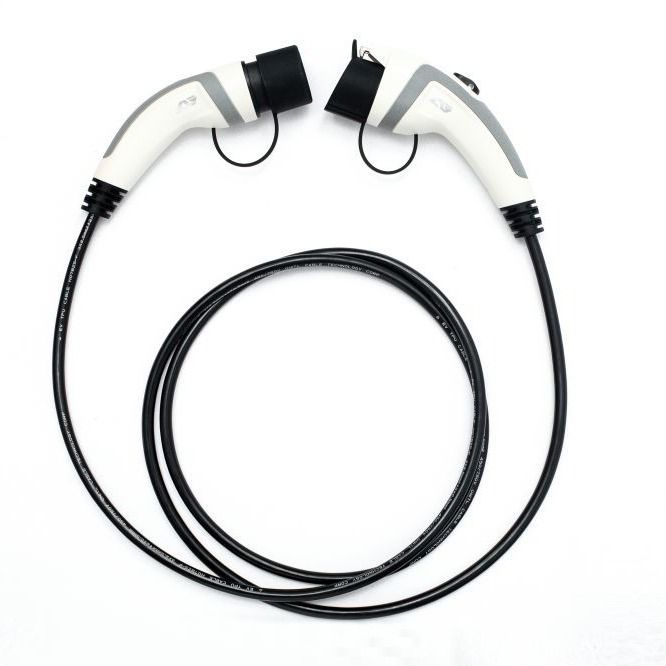

16A 1 phase 5m white cladding TPU material TUV certification Type 1 toe Type 2 ev charger cable
Product Description
|
Input & Output |
|||
|
Input voltage/Output voltage |
100~250V AC |
Max. output current |
16A 1Phase |
|
Input frequency |
47~63Hz |
Charging interface type |
Type 1-Type2 |
|
Max. output power |
22KW |
|
|
|
Protection |
|||
|
Over voltage protection |
yes |
Earth leakage protection |
yes |
|
Under voltage protection |
yes |
Over-temp protection |
yes |
|
Over load protection |
yes |
Lightning protection |
yes |
|
Short circuit protection |
yes |
|
|
|
Function and Accessory |
|||
|
Ethernet/WIFI/4G/Bluetooth |
No |
Cable gauge |
3x2.5+2x0.5mm2 |
|
Plug type |
Type 1-Type2 male&female |
Plug material |
Thermoplastics |
|
Length |
5 meters |
Cable material |
TPU |
|
Working environment |
|||
|
Waterproof Protection degree |
IP67 |
Maximum altitude |
<2000m |
|
Environment temperature |
-40℃ ~ +50℃ |
Cooling |
Natural air cooling |
|
Relative humidity |
0-95% non-condensing |
Standby power consumpiton |
<8W |
|
Package |
|||
|
Dimension (W/H/D) |
40/38/8cm |
Weight |
4KG |
|
Certificate |
CE, TUV, |
||
Product Detail
Product Specification
Standard : Mode 3 male plug to female plug
Certificate: TUV, CE
Current: 16/32A singple/three phase
Length: 5m (16.4ft)
Plug Colour: Black
Cable Colour: Black
Cable: straight / coiled
Product Professional Data
Service life:>50,000 times
Insulation resistance: > 1000M Ω
Terminal temperature rise: <50K
Withstand voltage: 2000V
Contact impedance: 0.5m Ω Max
Vibration resistance: Meet JDQ 53.3 requirements
Working temperature: -30°C ~+ 65°C
Shell Material: Thermo Plastic ( Insulator inflammability UL94 VO)
Contact Pin: Copper alloy, silver or nickel plating
Sealing gasket: rubber or silicon rubber
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
