| Brand Name: | ANS |
| Model Number: | ANS-T2-25kW |
| MOQ: | 1pc |
| Price: | USD |
| Packaging Details: | standard exported package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

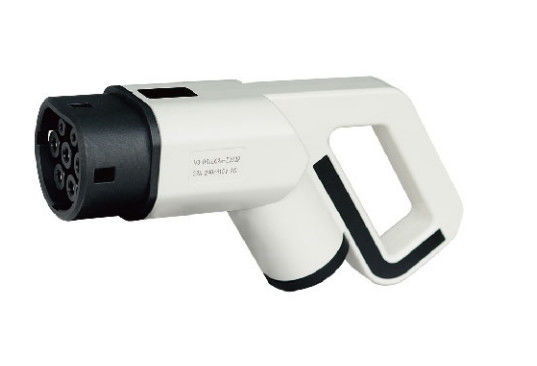

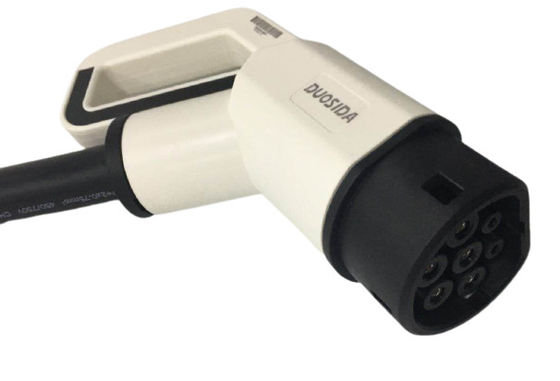

IEC 62196 Type 2 EV Charging Cables 63A 415V AC Fast Charging Plug Type 2 EV Charging Cables
Features:
Meet IE 62196-2010 standard
Excellent protection performance,protection grade IP54(working condition)
Nice appearance,hand-held ergonomic design, easy plug
Mechanical properties
Mechanical life : no-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N
Electrical Performance
Rated current : 63A
Operation voltage: 415V
lnsulation resistance: >1000MQ(DC50Ov)
Terminall temperature rise :<50K
withstand voltage : 2000V
Environmental performance
Operating temperature:-30℃~+50°C
Applied Materials
Case Material: Thermoplastic,flame retardant grade UL94v-o
Contact Resistance:0.5mQ Max
Contact bush: Copper alloy,silver plating
|
Rated Current:
|
63A | ||
|
Operating Voltage
|
AC 415V
|
||
|
Insulation Resisitance
|
>1000MΩ(DC500V)
|
||
|
Withstand Voltage
|
2000V
|
||
|
Contact Pin
|
Copper alloy, Silver
|
||
|
Working temperature
|
-30°C ~+50°C
|
||
|
Flame Retardant Grade
|
UL94 V-0
|
||
|
Contact Resistance:
|
0.5mΩ Max
|
||
|
Waterproof
|
IP54
|
||
|
Certificate
|
CE,TUV Approved
|
||
Certification: UL,CE
|
|
