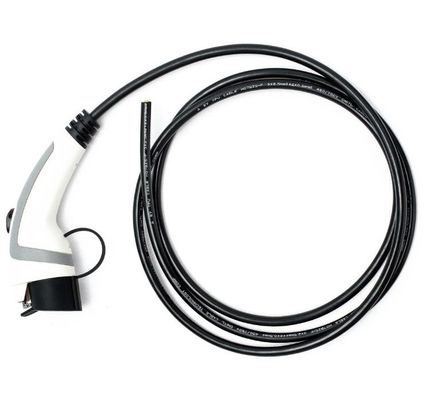

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector

Brand Name:	ANS
Model Number:	ANS-T1-7kW
MOQ:	1pc
Price:	USD
Packaging Details:	standard exported package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

TUV,CE

Product Name:

Type 1 EV Connector

Amps:

Voltage:

Power:

Standard:

SAE J1772 -2012

Model:

Level 2 US Charging Plug

Logo:

Support Customzation

Cable Length:

25feet，30feet

Supply Ability:

1000cs a week

Highlight:

SAE J1772 Type 1 EV Charging Cable 30feet

30feet IP55 Type 1 EV Charging Cable

IP55 Type 1 EV Connector

Product Description

SAE J1772 Type 1 EV Charging Cables 32A 250V 7kW Waterproof IP55 with TPU Materials Type 1 EV Connector

Features:

Conform to the provisions and requirements of SAEJ1772-2012,IEC 62196-2 20162-l
Using riveting pressure process with none screw ,have a beautiful appearance.Hand-held design conform tothe ergonomic principle , plug conveniently
XLPO for cable insulation prolonging the aging resistance life-span, TPU sheath improved the bending lifeand wear resistance of cable.
Excellent protection performance, protection grade achieved lP55 ( working condition )
Adopted double color coating technology, personalized custom a variety of colors (Orange, blue, green.,grey)

Mechanical properties

Mechanical life : no-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N

Electrical Performance

Rated current : 16A,20A, 32A
Operation voltage: 240V
lnsulation resistance: >1000MQ(DC50Ov)
Terminall temperature rise :<50K
withstand voltage : 2000V

Environmental performance
Operating temperature:-30℃~+50°C

Applied Materials

Case Material: Thermoplastic,flame retardant grade UL94v-o
Contact Resistance:0.5mQ Max
Contact bush: Copper alloy,silver plating

Rated Current:	32Amp
Operating Voltage	AC 120V / AC 240V
Insulation Resisitance	>1000MΩ(DC500V)
Withstand Voltage	2000V
Contact Pin	Copper alloy, Silver
Working temperature	-30°C ~+50°C
Flame Retardant Grade	UL94 V-0
Contact Resistance:	0.5mΩ Max

Waterproof	IP54
Certificate	CE,TUV Approved

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector 0

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector 1

Certification: UL,CE

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector 2

SAE J1772 Type 1 EV Charging Cable 30feet Waterproof IP55 Type 1 EV Connector 3
