| Brand Name: | ANS |
| Model Number: | ANS-portable-charger |
| MOQ: | 1 |
| Packaging Details: | 15.7*15*3.15(in) |
| Payment Terms: | L/C, T/T, Western Union |
Home charger 11KW Mode 2 portable EV charger 8A10A13A16A
Product Description
| Type | ANS-EVA11 | Plug the power | 80N<F<100N |
| Color | Black/White/customized | Patch life | ≥10000 |
| Rated Current | 8A-10A-13A-16A | Fire rating | UL94 V-0 |
| Rated Voltage | 380V~450V | Waterproof rating | IP55 |
| Resistance Voltage | 2000V | Operating Temperature | -30°C to50°C |
| Insulation resistance | >10MΩ | Cable Specifications | 5*2.5mm2+2*0.5mm2 |
| Contact resistance | less than 0.5mΩ | The main material | PA/Copper Alloy |
Functional definition:
| Mark | Functional Definition |
| 1-(L1) | AC power |
| 2-(L2) | AC power |
| 3-(L3) | AC power |
| 4-(N) | Neutral |
| 5-(PE) | PE |
| 6-(CP) | Control Confirmation |
| 7-(PP) |
Connection Confirmation |
Product Detail

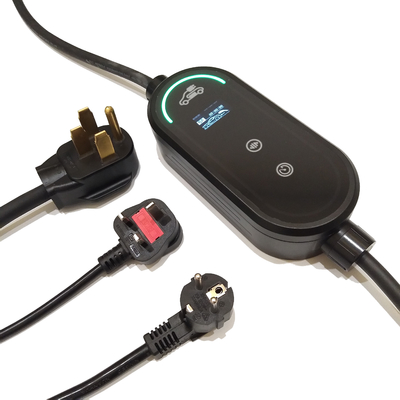

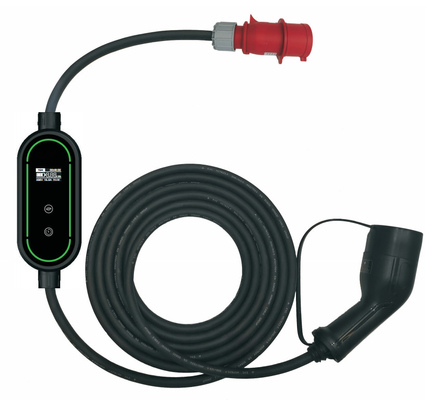

11KW 380V Mode 2 Electric Vehicle Charger / Type 2 plug
Cable length: 5m

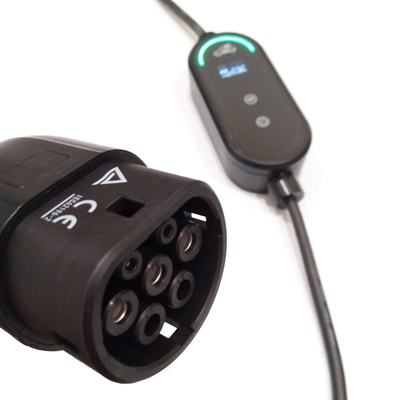

Car Side Plug : Type 2
Current:8A-10A-13A-16A
Voltage: 380V±20%
Max. power: 11kW
Ingress Protection: IP 55
Operating temperature: -30℃~+50℃
Certificate: CE
Features

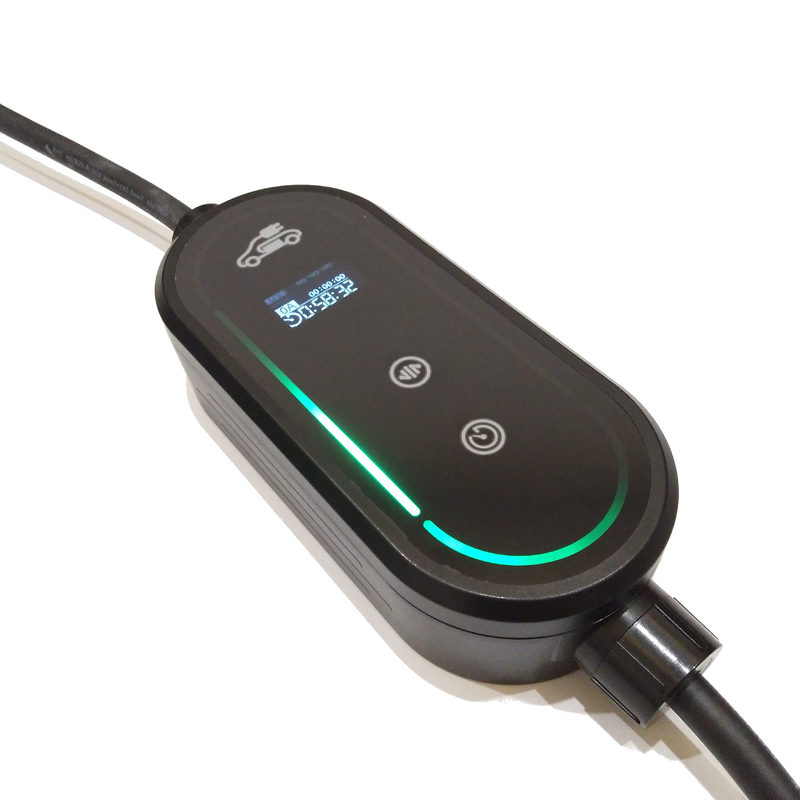

LED Display:
1. Charging Temperature
2. Charging Current
3. Charging Voltage
4. Energy Charged in KW/h
5. Charged time.
6.Set Current
7. Charging speed in KW
LED Indicators
Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A 10A 13A 16A
Certification
|
