CCS Combo Charger

65A 1000V CCS Combo Charger UL EV Charger Connector Flame Retardant Grade

All Category

Type 1 To Type 2 EV Charging Cable

Type 2 To Type 2 EV Charging Cable

65A 1000V CCS Combo Charger UL EV Charger Connector Flame Retardant Grade

Brand Name:	ANS
Model Number:	ANS-CCS1-65A
MOQ:	1pcs
Price:	USD
Packaging Details:	export standard package
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Product Name:

65A 1000V CCS Combo 1 Charger

Amps:

Voltage:

1000V

Cable Size:

3*8AWG+6*18AWG

Color:

Black

Standard:

SAE US Standard

Logo:

Support Customzation

Cable Length:

5M Or Others Based On Requirement

Supply Ability:

1000pcs a week

Highlight:

65A CCS Combo Charger

1000V ev charger connector

UL ev charger connector

Product Description

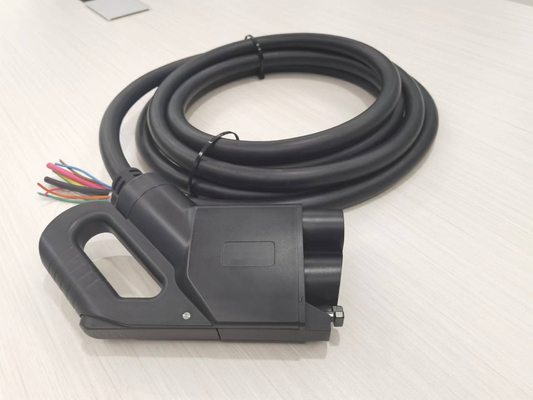

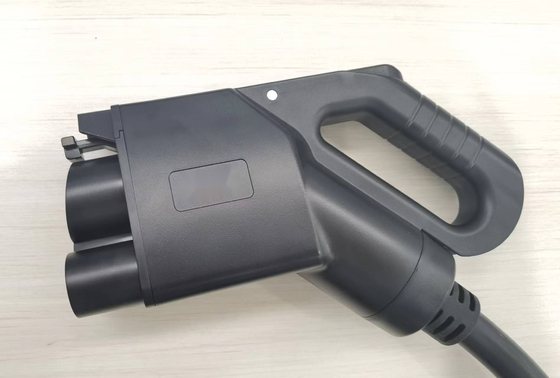

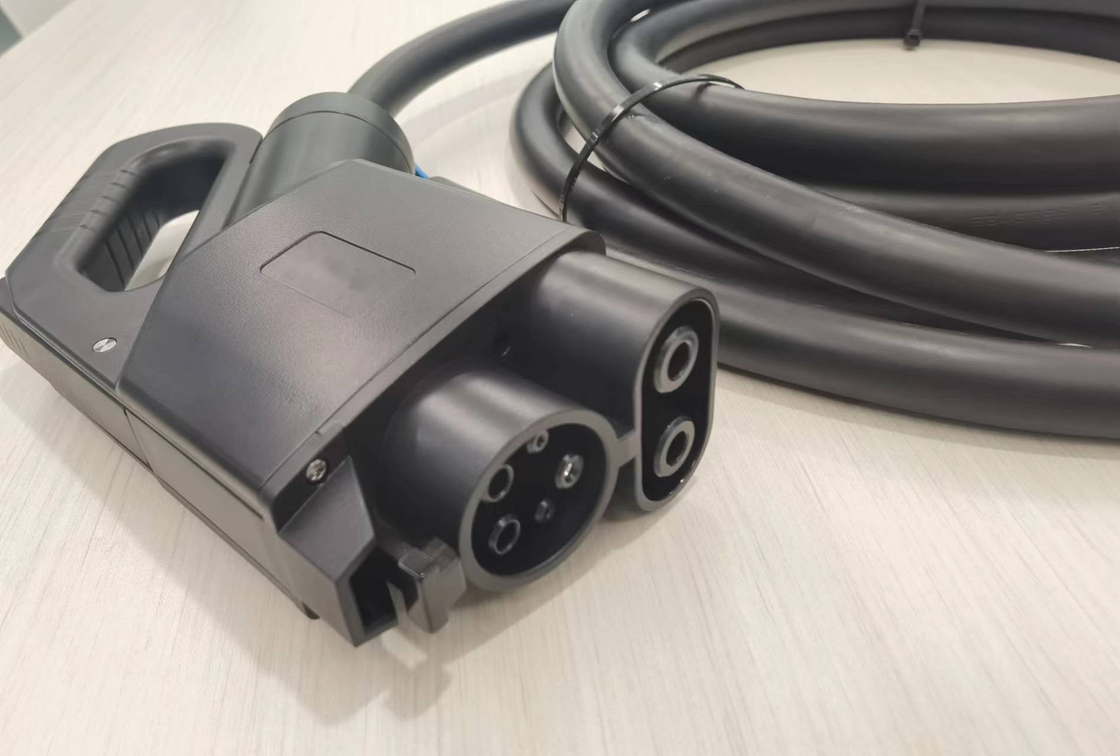

65A 1000V CCS Combo 1 Charger EV DC Charging Cables 65kW EV Charger Plug UL Certificate

MECHANICAL PROPERTIES

Mechanical life:no-load plug in/out ＞10000 times

Coupled insertion force:45N＜F＜100N

Impat of external force:can afffford 1M drop

ENVIRONMENTAL PERFORMANCE

Operating temperature:-30℃-﹢50℃

Rated current:	65A
Operation voltage	1000V
Insulation resistance	＞500MΩ(DC500V)
Contact Resistance	0.5mΩ Max
Terminal temperature rise	＜50K
Withstand voltage	3000V

APPLIED MATERALS

Case material:thermoplastic,flame retardant grade UL94 V-0

Terminal:Copper alloy,silver plating

Temperature Sensor: PT1000

AUTHENTICATION STANDARD: IEC 62196- 3

RAIED CURKENI :65A

RATED VOL TAGE: 1000V DC

Cable specifification

3*8AWG+6*18AWG

Factory photo

package
