| Brand Name: | ANS |
| Model Number: | ANS-EP-11kw |
| MOQ: | 1pc |
| Price: | USD |
| Packaging Details: | standard export package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

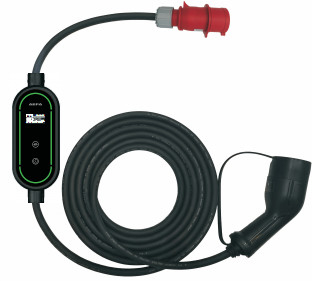

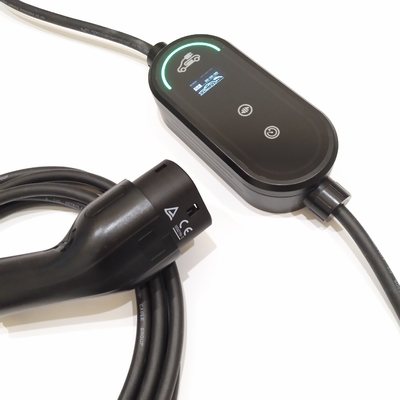

11kW Adjustable Mobile Charger with Red CEE Plugs 16A 400V Delay Charging Portable Type 2 EV Charger
|
Input/Output voltage
|
AC 400V
|
|
Input frequency
|
50/60Hz
|
|
Max.output power
|
3-Phase up to11kW(@400V 16A)
|
|
Max.output current
|
16A for 3-Phase
|
|
Stardard
|
IEC 62752:2016/COR1:2019
|
|
Certificate
|
CE
|

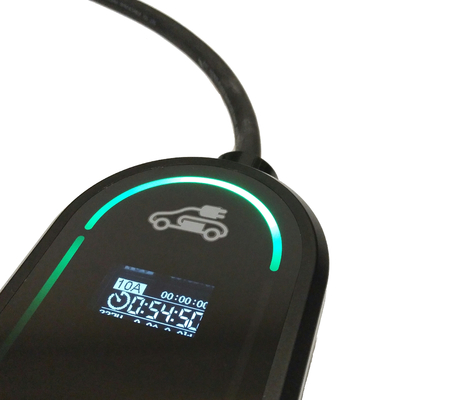

OLED Display
◆Charging time
◆kWh
◆Charging voltage 1 current/ power
◆Total electricity
Key Advantages
◆Adjustable current
◆Delay charging setting
◆LED Light and Touch Key
◆Built-in RCD type B
◆IP67 Waterproof
|
Over voltage protection
|
Yes |
|
Under voltage protection
|
Yes |
|
Over load protection
|
Yes |
|
Short circuit protection
|
Yes |
|
Leakage protection
|
Yes |
|
Over-temp protection
|
Yes |
|
Lightning protection
|
Yes |
|
LED indicators
|
Yes
|
|
OLED screen
|
Yes
|
|
RCD
|
Type B
|
|
Current adjustment
|
Yes
|
|
Delay charging adjustment
|
Yes
|
|
Ethernet/WIFI/4G/Bluetootht
|
No
|
|
Protection degree
|
IP67 |
|
Operation temperature
|
-30 ºC ~ 60 ºC |
|
Relative humidity |
≤95%RH |
|
Operating elevation limit
|
≤2000M |
|
Cooling
|
Natural air cooling
|
|
Standby power consumption
|
<0.5 W |
|
Charging cable
|
5m (Standard configuration)
|
|
Control box
|
HxWxD=200mm*90mm*52mm
|
|
Weight
|
≤3.2 KG |
|
Colour&Material
|
Black;Tempered Glass,PC
|
|
