| Brand Name: | ANS |
| Model Number: | ANS-T1-9.6kW |
| MOQ: | 1pc |
| Price: | USD |
| Packaging Details: | standard exported package |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

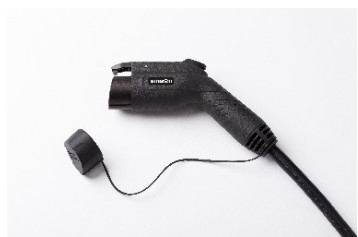

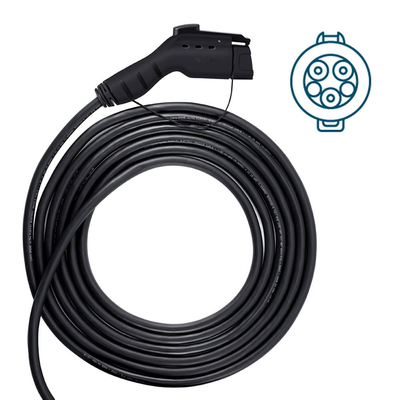

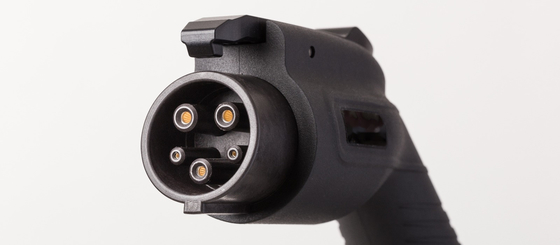

SAE J1772 Type 1 Soft UL Certified IP55 50A EV Charging Cables With US Standard Type 1 EV Charging Plug
SAE J1772 Type 1 EV Charging Cables 40A 250V UL Certification US Standard Type 1 EV Charginng Plug
Features:
Meet SAE J1772-2010standard
Excellent protection performance,protection grade IP55(working condition)
Nice appearance,hand-held ergonomic design, easy plug
Mechanical properties
Mechanical life : no-load plug in/pull out> 10000 times
Coupled insertion force: >45N<80N
Electrical Performance
Rated current : 16A/32A/40A/50A/65A/80A
Operation voltage: 240V
lnsulation resistance: >1000MQ(DC50Ov)
Terminall temperature rise :<50K
withstand voltage : 2000v
Environmental performance
Operating temperature:-40℃~+50°C
Applied Materials
Case Material: Thermoplastic,flame retardant grade UL94v-o
Contact Resistance:0.5mQ Max
Contact bush: Copper alloy,silver plating
|
Rated Current:
|
16A/32A/40A/50A/65A/80A
|
||
|
Operating Voltage
|
AC 240V
|
||
|
Insulation Resisitance
|
>1000MΩ(DC500V)
|
||
|
Withstand Voltage
|
2000V
|
||
|
Contact Pin
|
Copper alloy, Silver
|
||
|
Working temperature
|
-40°C ~+50°C
|
||
|
Flame Retardant Grade
|
UL94 V-0
|
||
|
Contact Resistance:
|
0.5mΩ Max
|
||
|
Waterproof
|
IP55
|
||
|
Certificate
|
CE,UL Approved
|
||
Certification: UL,CE
|
|
